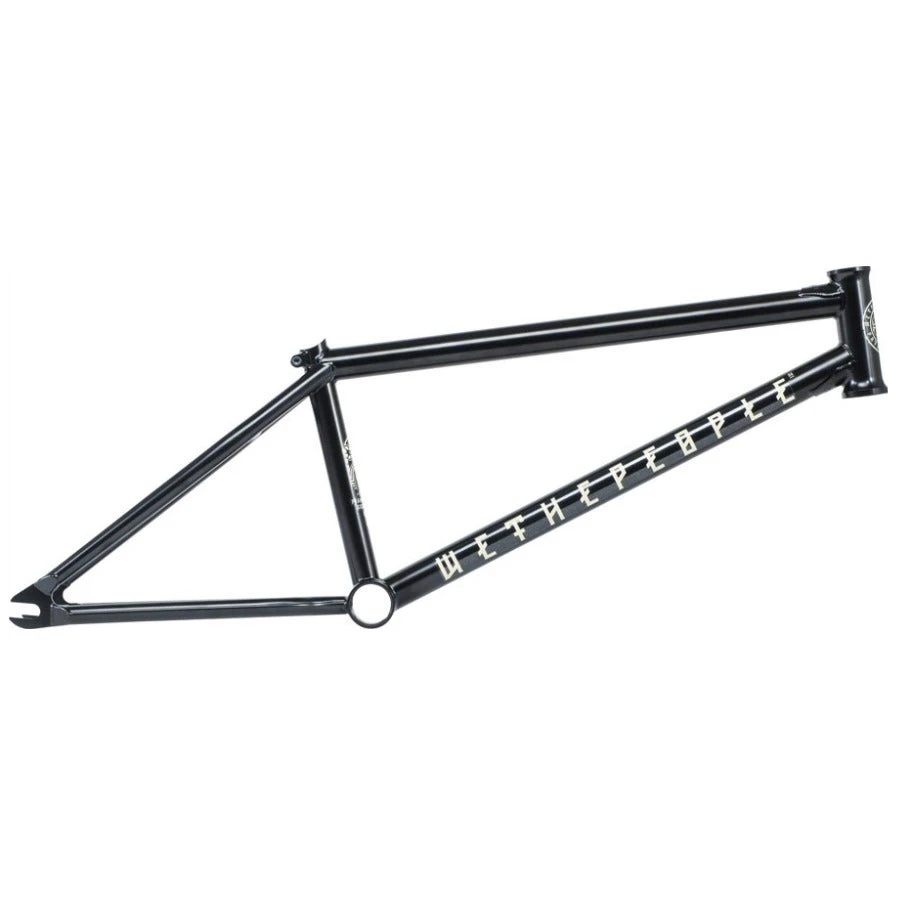

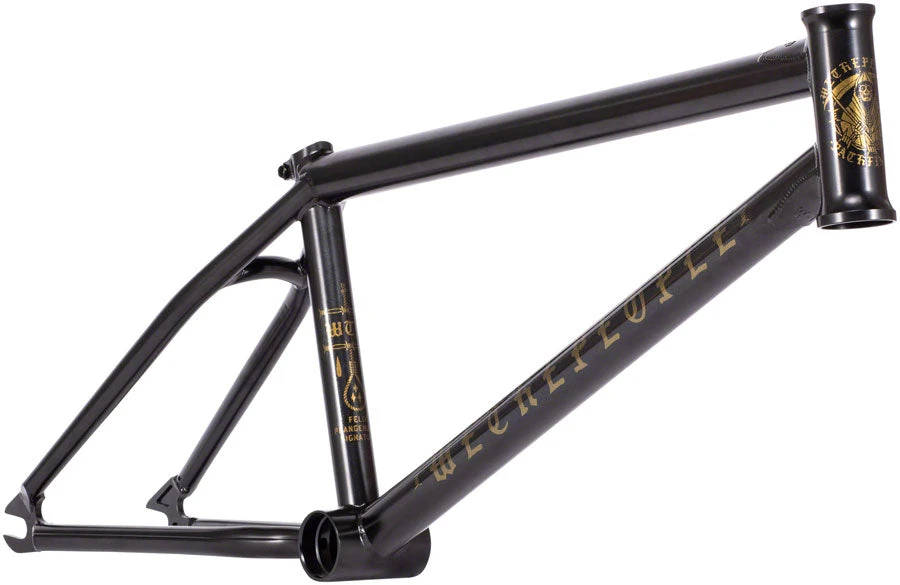

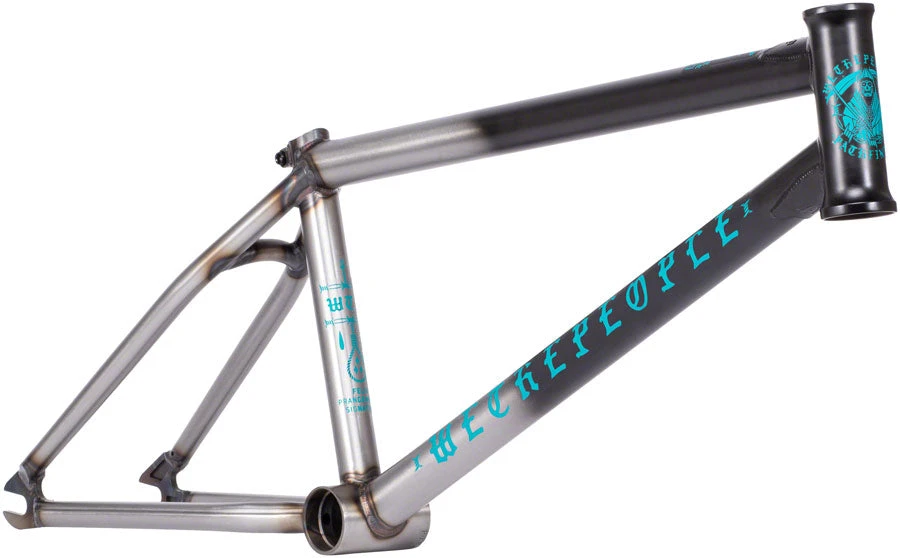

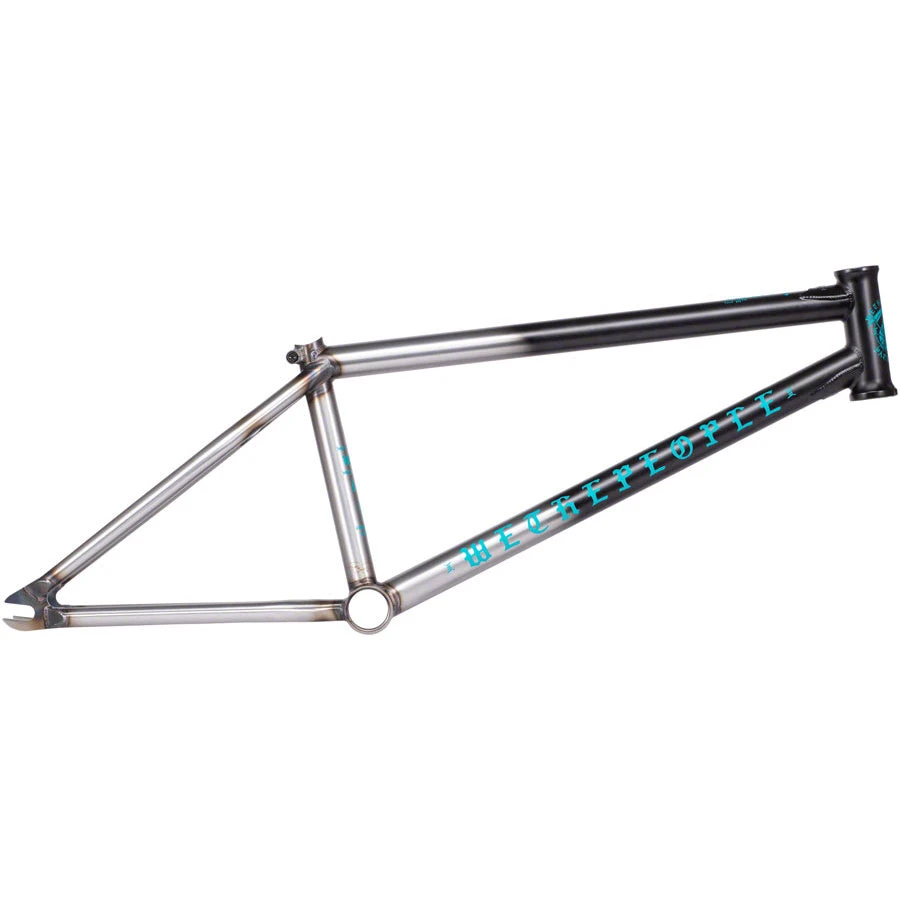

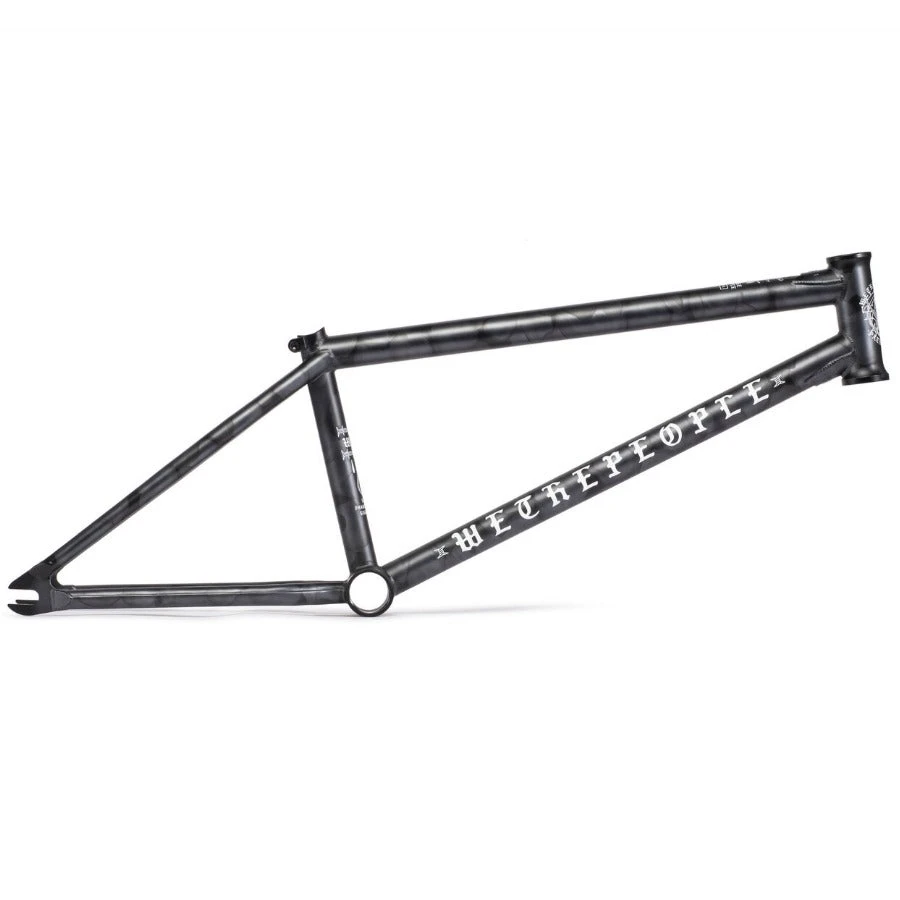

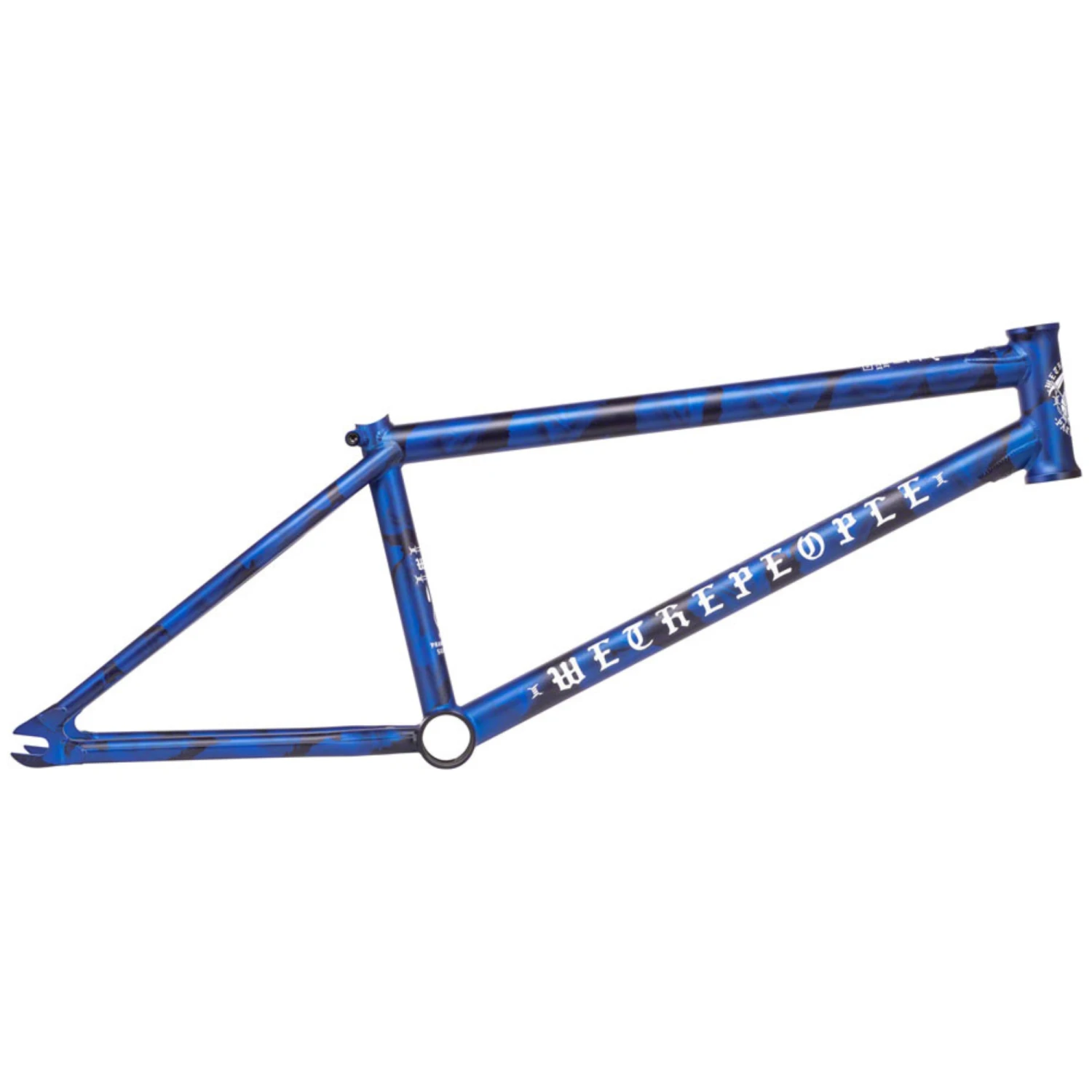

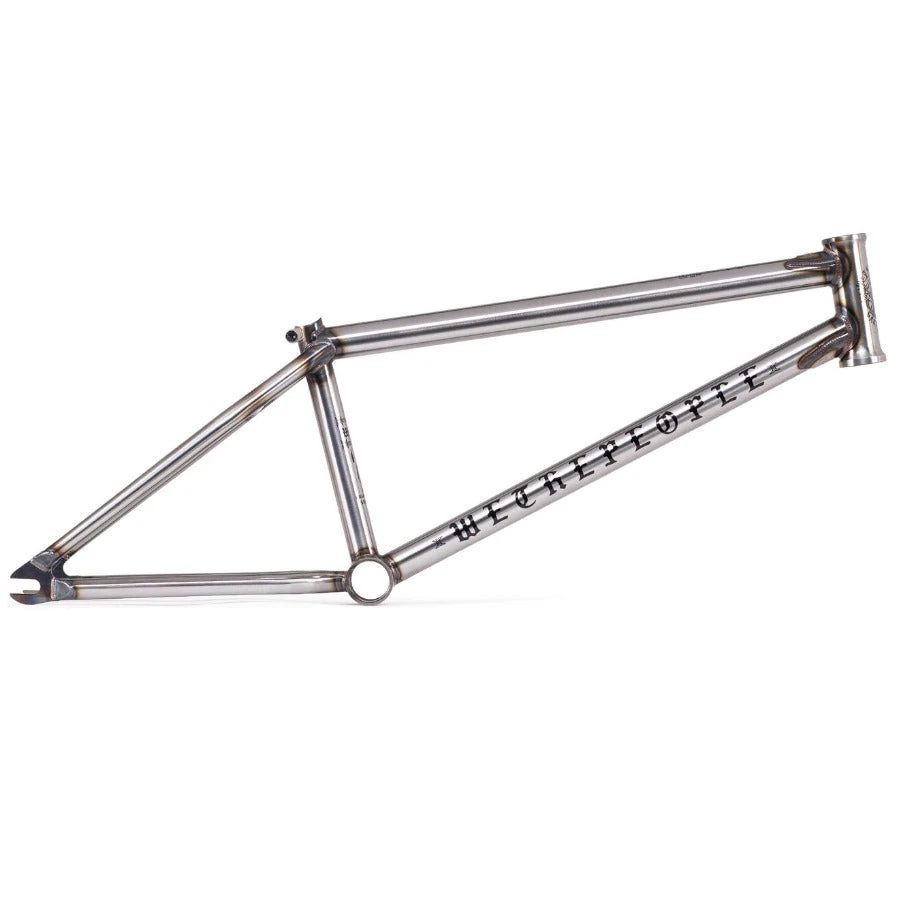

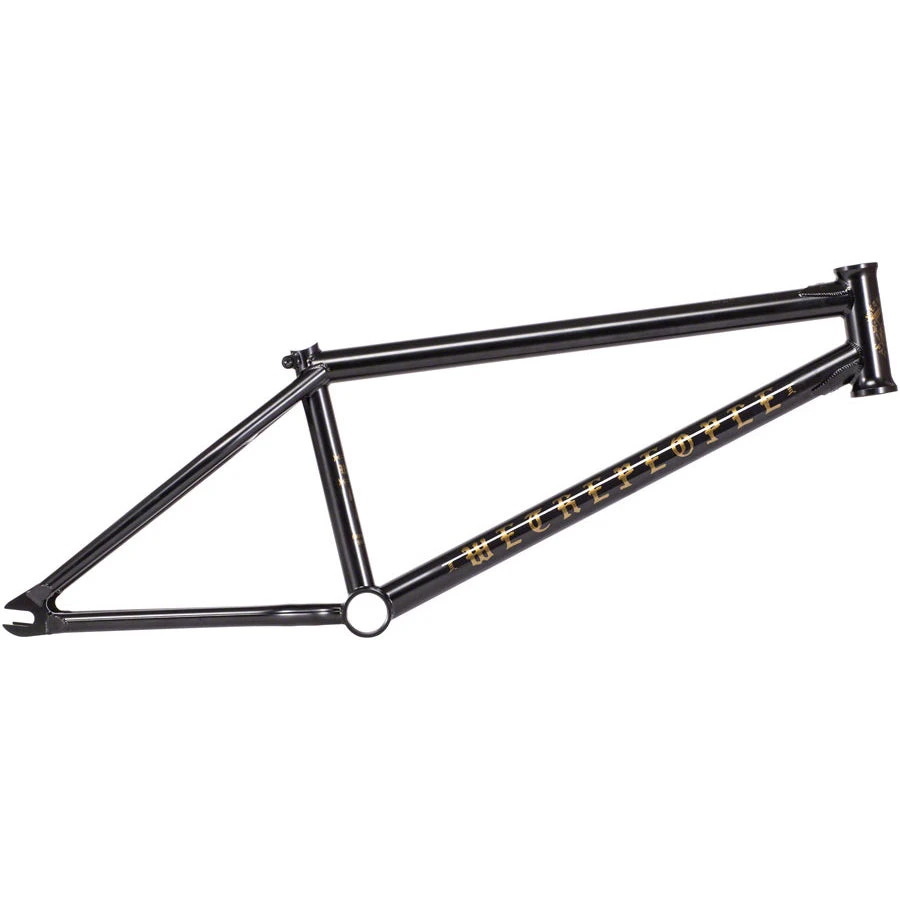

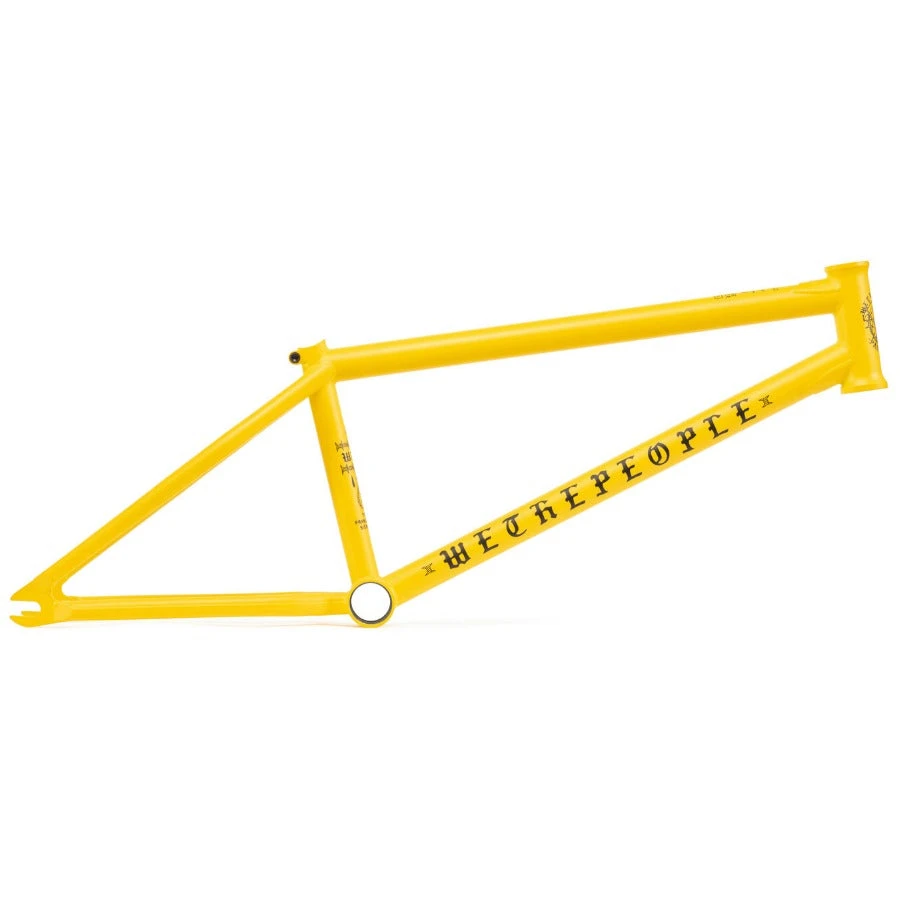

We The People Pathfinder Frame

Felix Prangenberg signature frame. Made from butted, seamless 4130 Japanese chromoly tubing. CNC machined and heat-treated 127mm tall head tube for integrated headsets. Extra-thick, double-butted top tube with top tube and down tube gussets.  CNC machined and heat-treated Mid bottom bracket shell with varying thickness to minimize denting. Wider rear triangle allows clearance for large 2.5″ width tires. No brake mounts. Extruded offset thickness, dent-resistant chainstays. 7.5mm thick invest cast dropouts. Includes WTP seat post clamp. This frame carries a lifetime warranty through the manufacturer.

NOTE: This frame is not designed for use with brakes.

Head Tube: 76º

Seat Tube: 71º

Standover Height: 9.66″ (20.75″, 21″ and 21.25″ top tube)

                                9.35″ (20.5″ top tube)

Bottom Bracket: 11.7″

Chainstay: 12.9″ – 13.5″ optimized for 13″-13.25″ (20.75″, 21″, and 21.25″ top tube)

                   12.7″ – 13.25″ optimized for 12.75″-13″ (20.5″ top tube)

Weight: 5.2 lbs (21″ TT)
