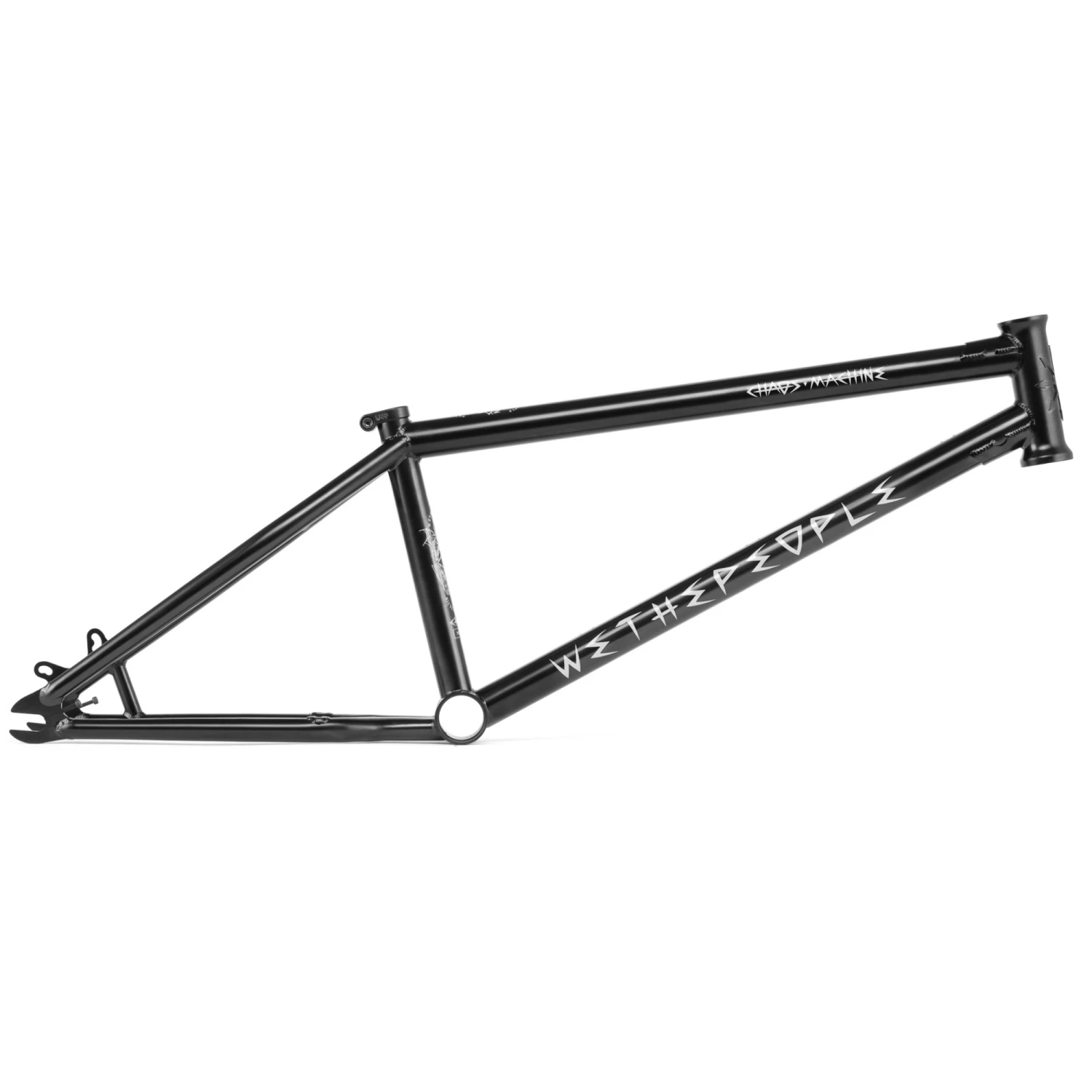

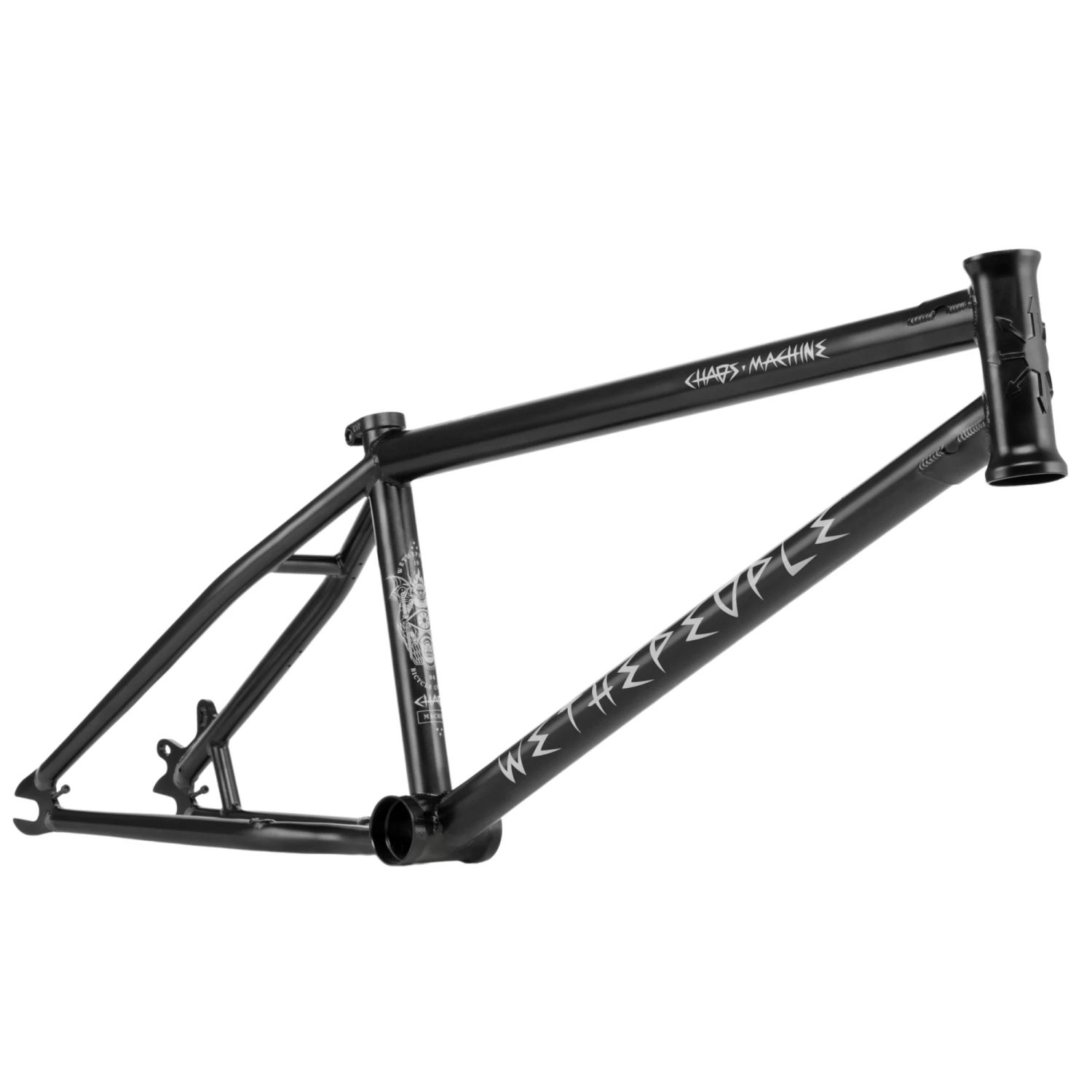

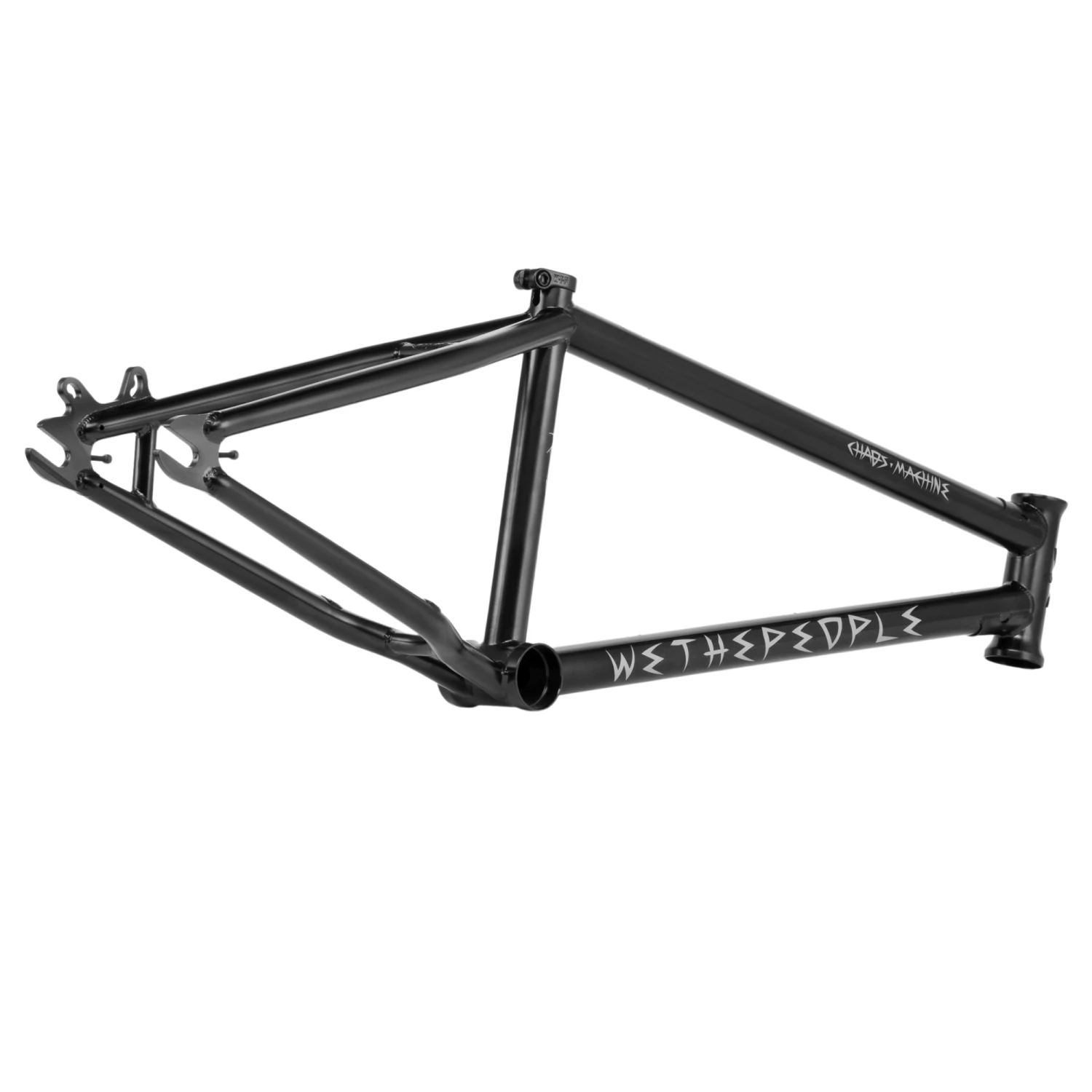

We The People Chaos Machine Frame

Tyson Jones-Peni signature frame designed for ripping trails, bowls and whatever else you want to throw at it. Featuring long and stable geometry, combined with WTP’s legendary frame building technology to make this one of the most unique BMX frames available. Equipped with both the options for a disc brake and a regular u-brake, leaving you free to decide between traditional BMX braking or the upgraded stopping power of a disc.

Made from butted, seamless Japanese 4130 chromoly tubing.

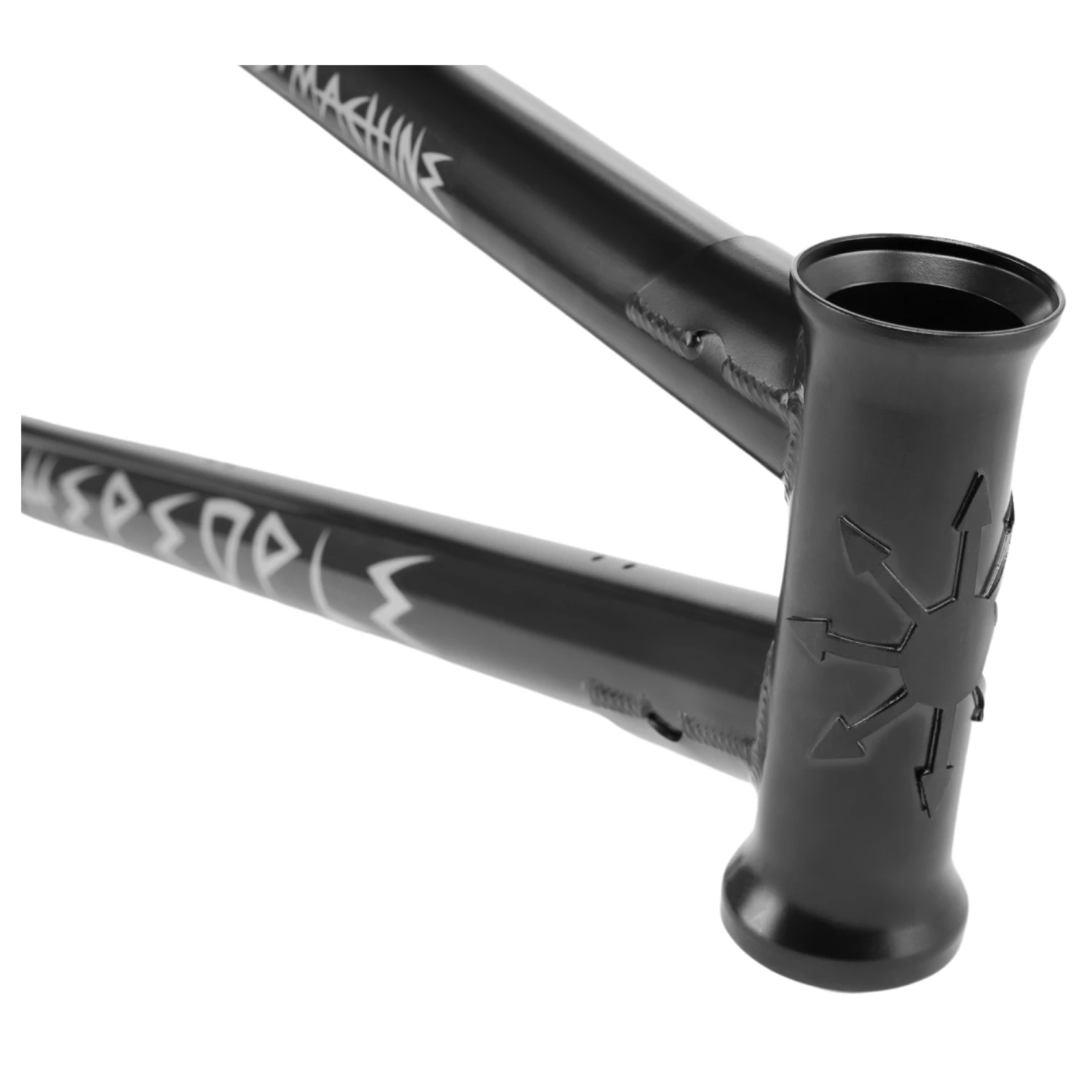

127mm CNC-machined and heat-treated head tube with brazed-on custom badge.

Larger head tube welds with WTP top tube and down tube gussets for added strength.

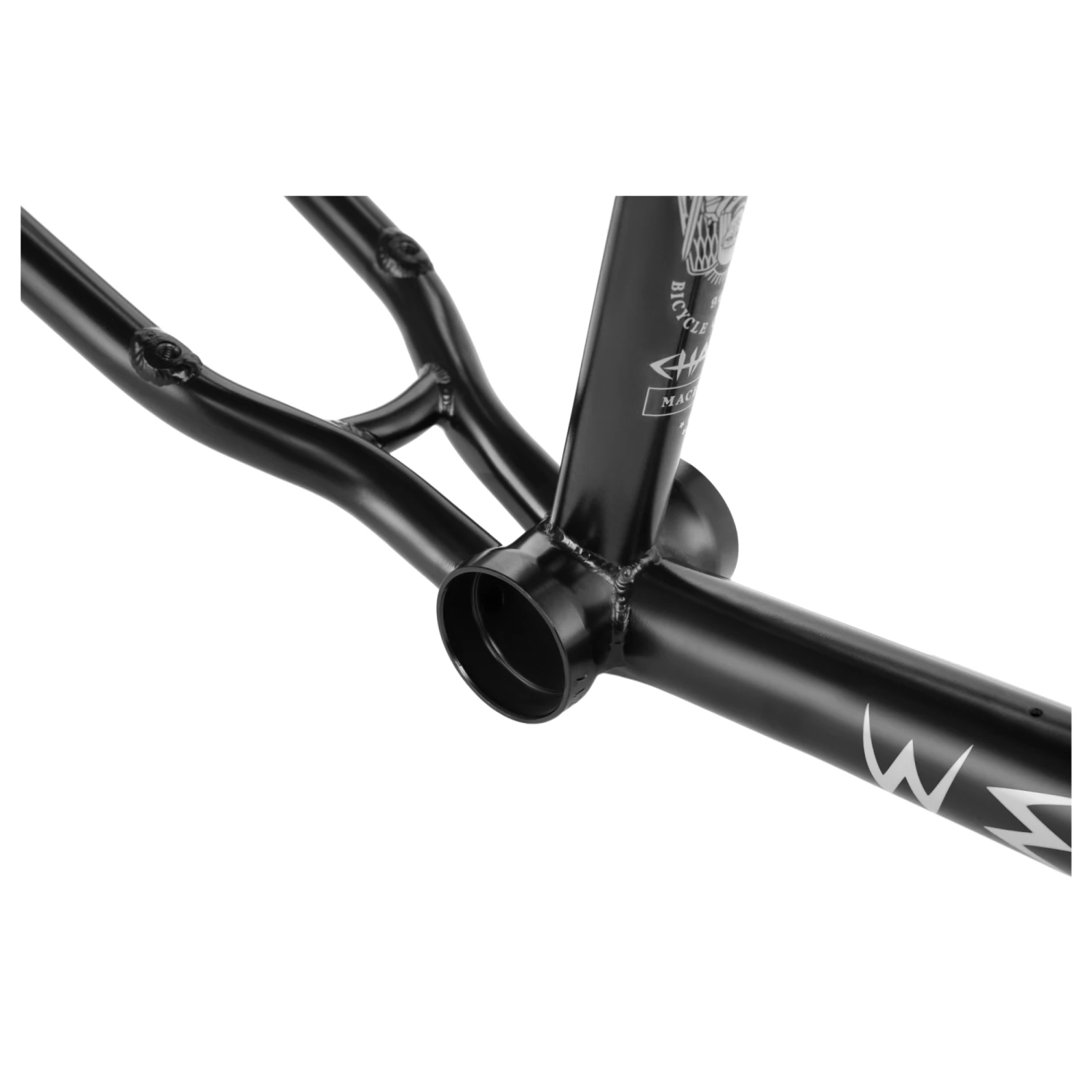

Mid bottom bracket shell with varying thickness to minimize denting. 74mm wide.

Wider rear triangle to accommodate larger tires.

Larger-radius chainstay and seatstay tubing for a stronger, stiffer rear end.

CNC-machined seatstay bridge.

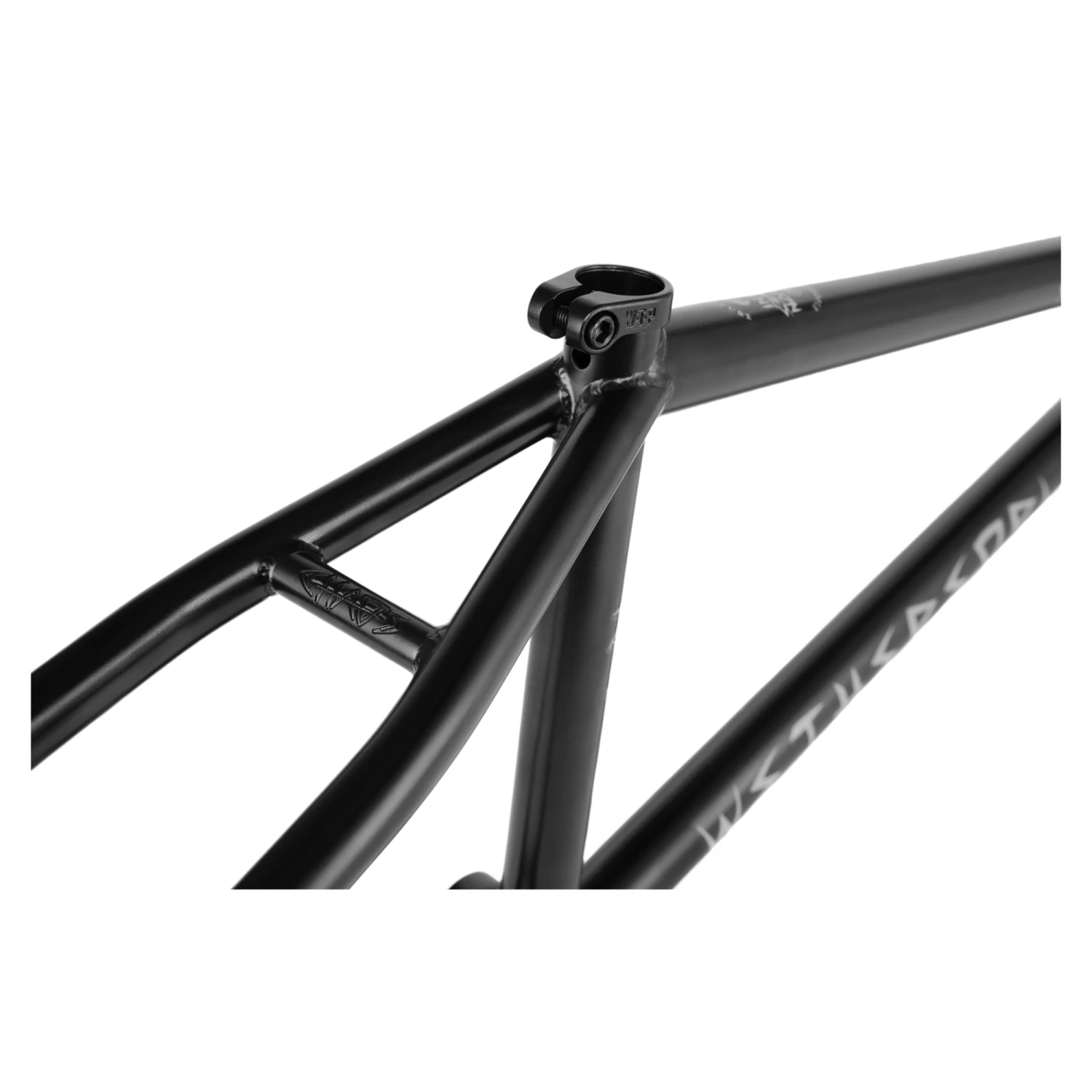

 Invest cast integrated seat post clamp.

I.S. (international standard) disc brake mounts for 120mm – 160mm rotors.

Removable u-brake mounts (not included).

Extra brace between the chainstay and seatstay for increased braking stiffness.

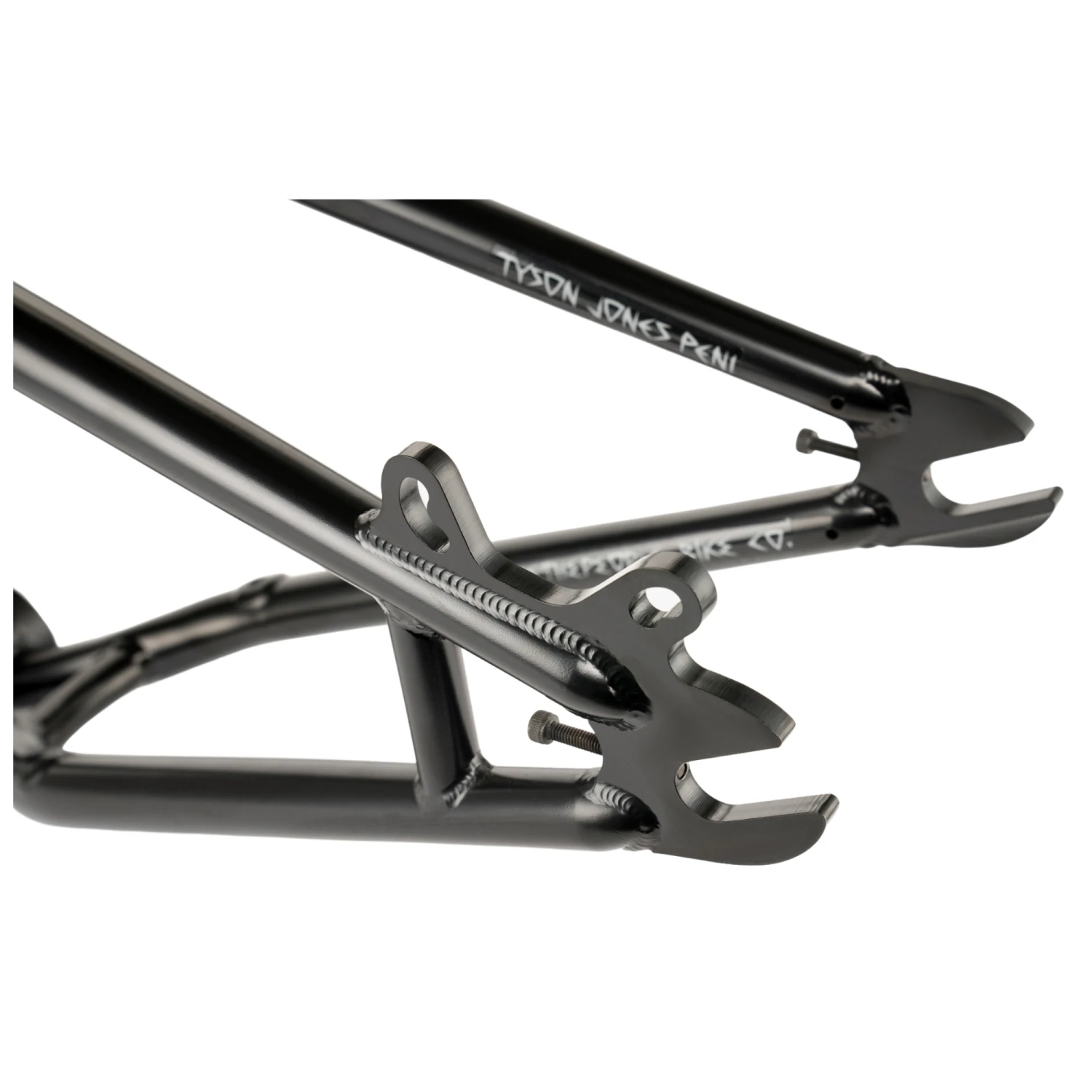

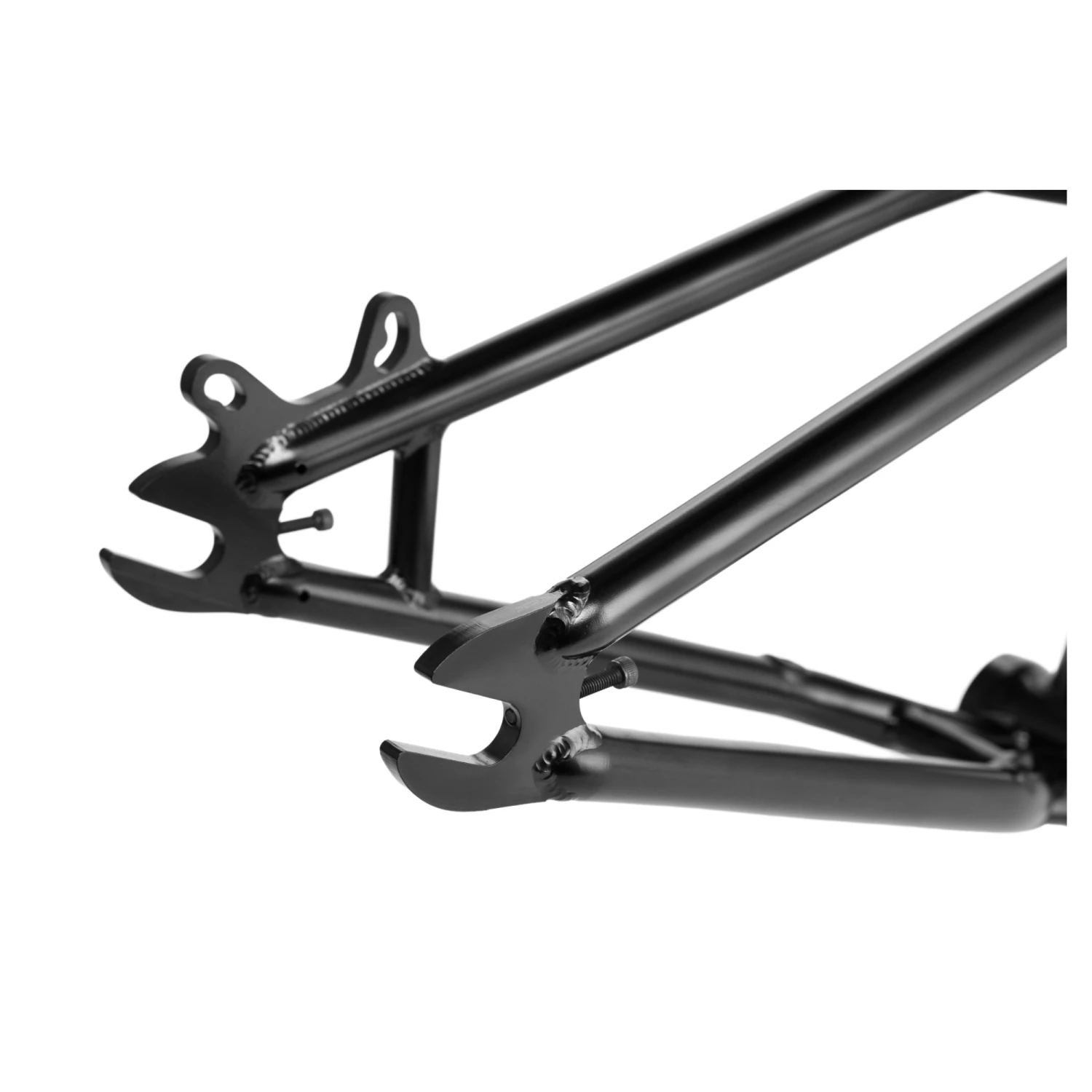

6mm CNC-machined, heat-treated chromoly 14mm dropouts are minimally sized and not suitable for pegs. Integrated chain tensioners.

Weight: 5.3 lbs (21.35″ Top Tube)

GEOMETRY

Head Tube Angle: 74.25º

Seat Tube Angle: 71º

Standover Height: 9.5″

Bottom Bracket Height: 11.5″

Chainstay Length: 14″ – 14.75″ / Optimized for 14.1″, 14.35″, or 14.7″ with 30/9 gearing

*FITS 20″ WHEEL ONLY.
