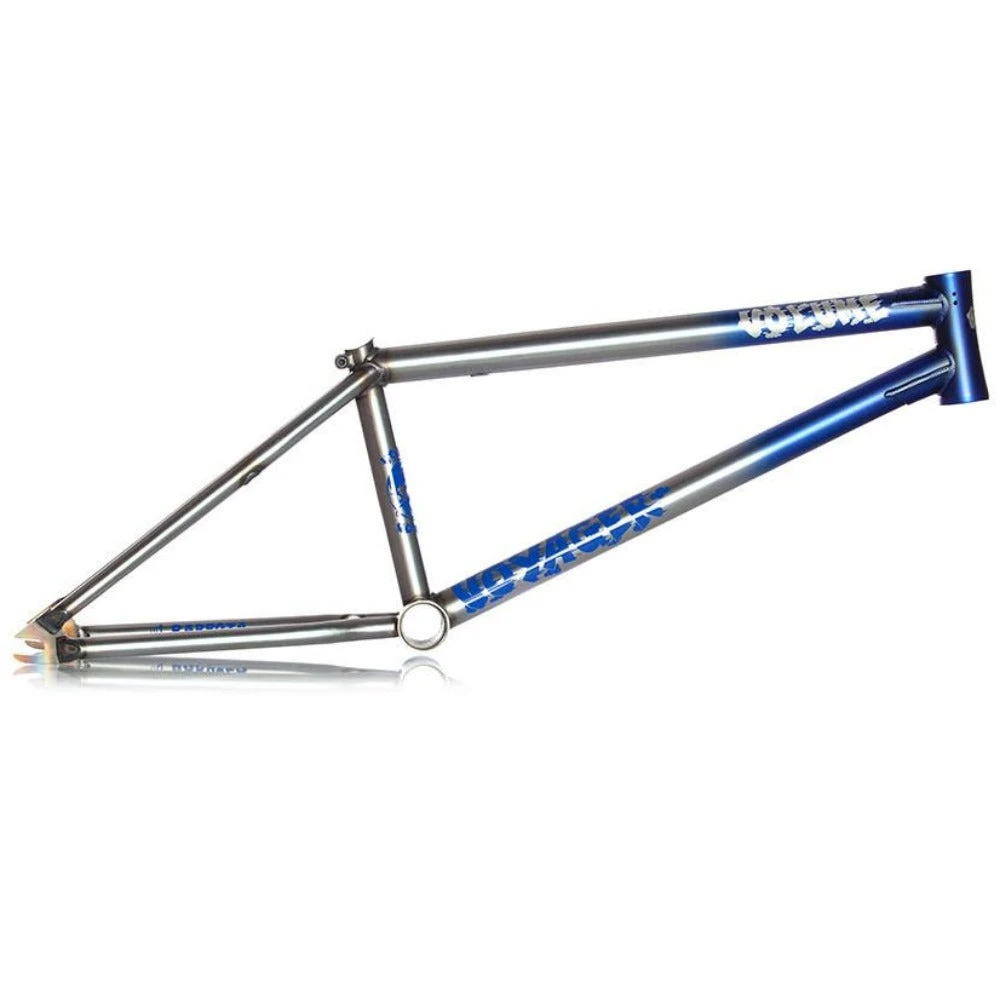

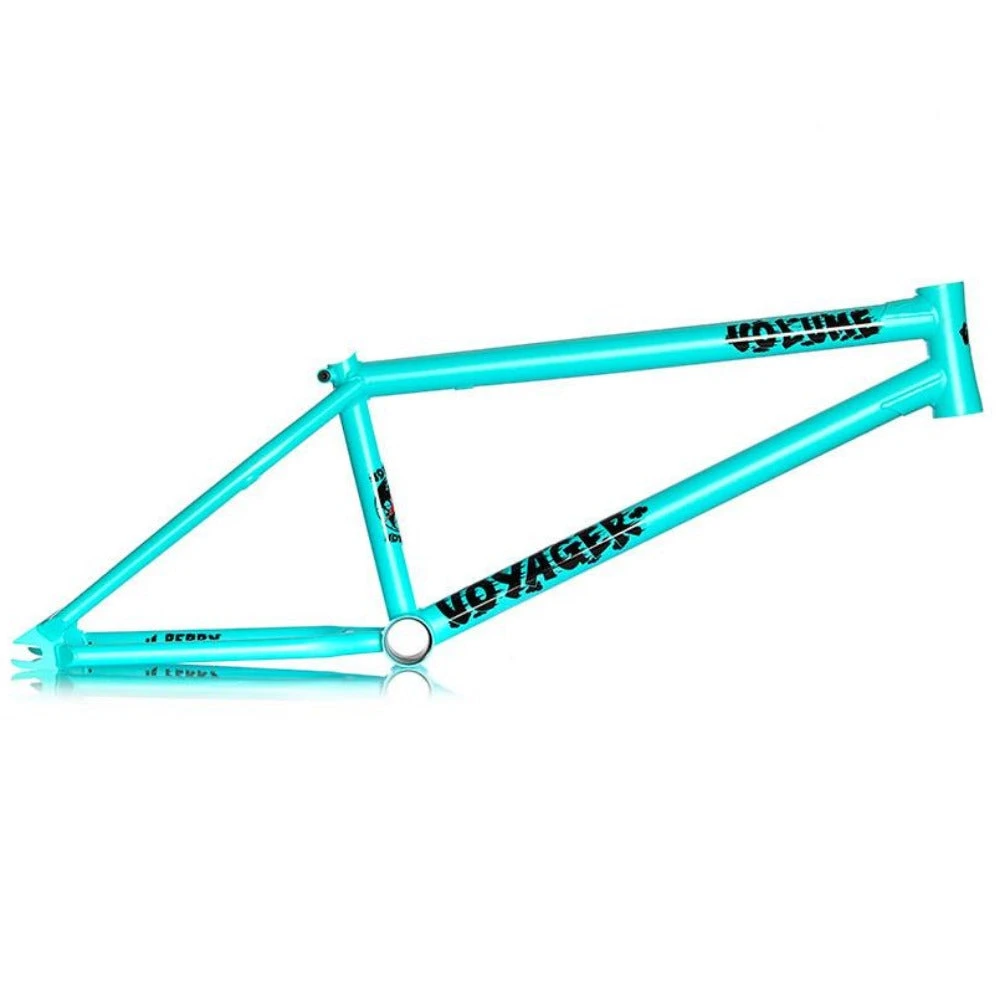

Volume Voyager V2 Frame

The New Voyager V2 frame features specs that our team riders have been asking for; steeper 75.25º head tube, shorter 12.5” slammed chainstay (12.75” center to center), a higher 9.25” seat tube height, and a 20.5” size for shorter riders. This frame now features double butted 4130 heat treated chromoly tubing, Mid BB shell, hour glass head tube, and small/ clean 6mm thick laser cut and welded dropouts with all new built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.

• Chainstay: 12.5″ slammed (12.75″ center to center)
• BB height: 11.7″
• Standover: 9.25″
• Head Tube Angle: 75.25°
• Seat Tube Angle: 71°
• Headtube: Integrated (45°X45° Campy Spec)
• Brake Mounts: Removable Seatstay Mounts
• Dropouts: Heat Treated, 6mm thick W/Built In Chain Tensioners. Clears hub guards and pegs of all sizes.
• Weight: 5 lbs 2 oz (21″)
