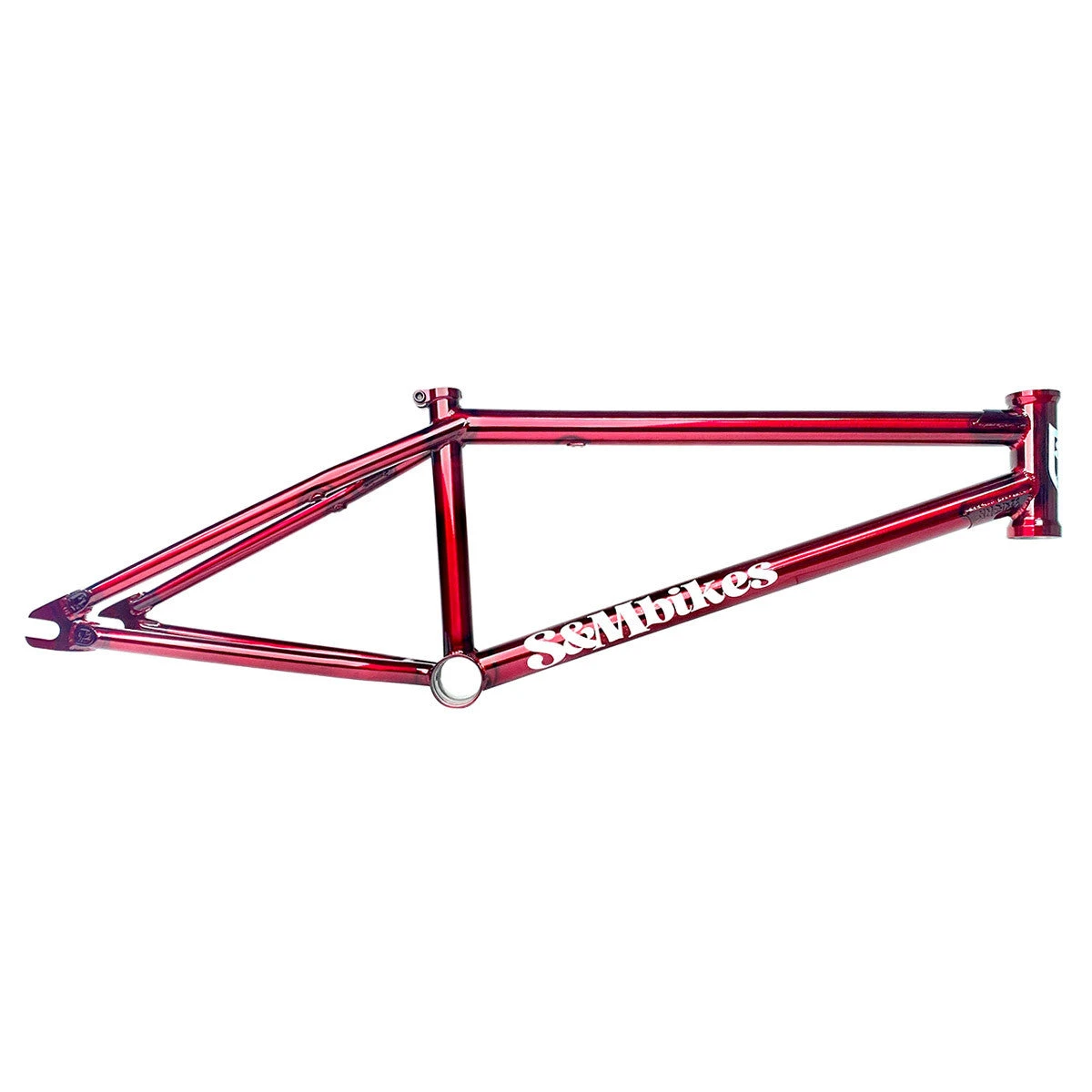

S&M Whammo V2 Frame

Made in the USA.

Craig Passero signature frame. Now with a shorter back end (12.9″), taller headtube (5″) and raised bottom bracket (11.8″)

Chainstay Length: 12.9″ – 13.5″

Head Tube Angle: 75.3º

Head Tube Style: Integrated

Seat Tube Angle: 71º

Seat Clamp: Integrated

Seat Post Size: 25.4mm

Bottom Bracket Height: 11.8″

Bottom Bracket Style: Mid

Standover Height: 8.85″

Brake Mounts: Removable (sold separately)

Dropouts: 14mm 4Q Baked

Gyro Tabs: None

Weight: 4.65 lbs

Tube Set: Butted ThermalX Tubing
