S&M Big Jumper 26″ Frame PRE-ORDER

Taking pre-orders now until 12:00 noon on April 11th. Shipping in mid-May

We believe 20” bikes are the original Dirt Jumpers and giving that moniker to 26” frames blows, but at the end of the day all that really matters is the ride. Our 26” BJ is designed to go fast and high, soak up bumps and brake better than its smaller counterparts. And unlike a smaller-rigid bike, a 26” bike with a suspension fork and disc brake not only roasts transitions almost effortlessly, it leaves riders in better condition to have just as much fun the next day.

Production is underway now, but all sizes/colors will be based on pre-orders so please get yours in ASAP.

• Geometry based on 100 – 120mm Suspension or equivalent rigid fork
• Headtube accepts 1.5” Tapered Steerer
• Disc size is 160mm with 0mm IS to POST mount adaptor
• Final stickers have not been decided on yet.
• Designed for 26″ disc brake wheel only.

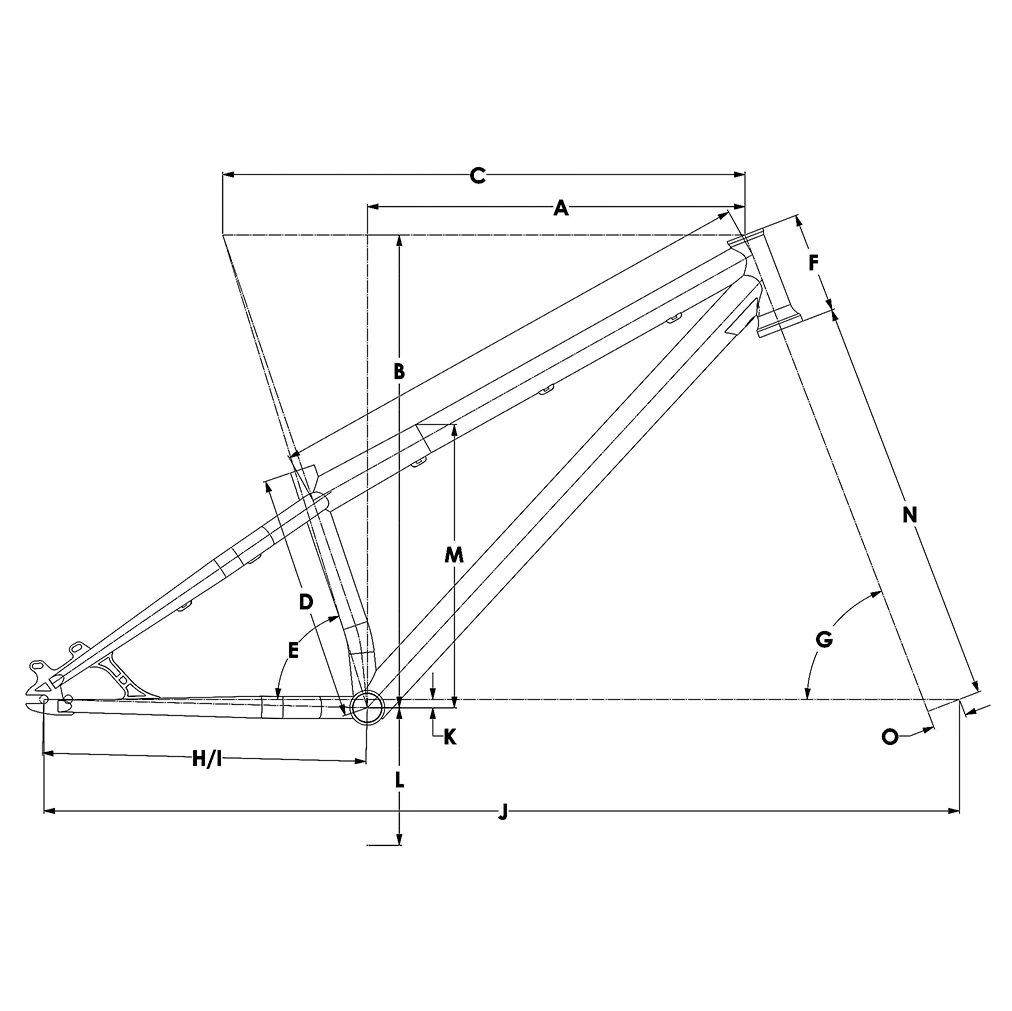

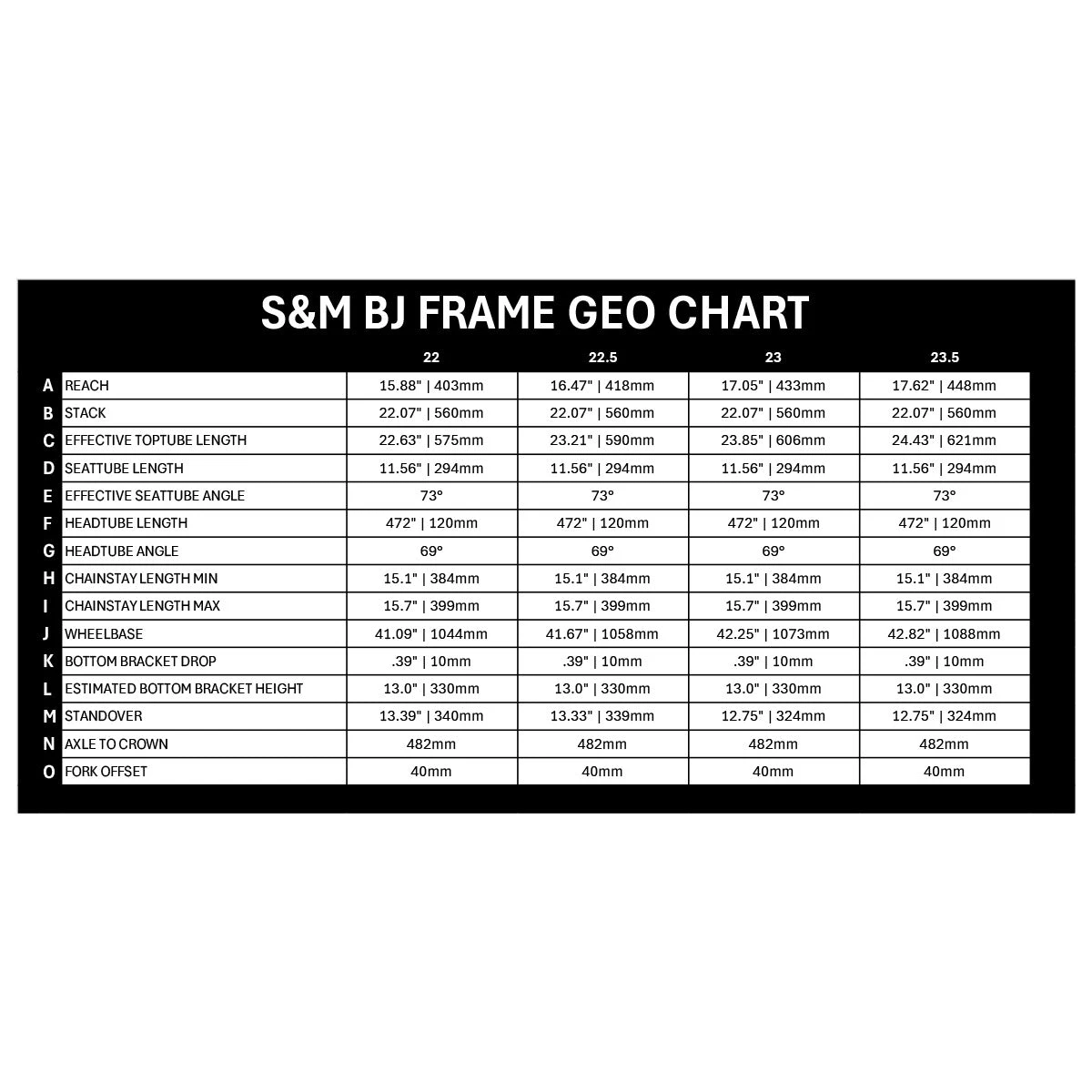

TOP TUBE LENGTHS	22″, 22.5″, 23″, 23.5″
REAR END LENGTH	15.1″ Slammed
HEAD TUBE ANGLE	69°
STANDOVER HEIGHT	10″
B.B. HEIGHT	12.6″ (.400″ Drop)
SEAT TUBE ANGLE	73°
HEAD TUBE	120mm Tall Integrated 42/52 Style

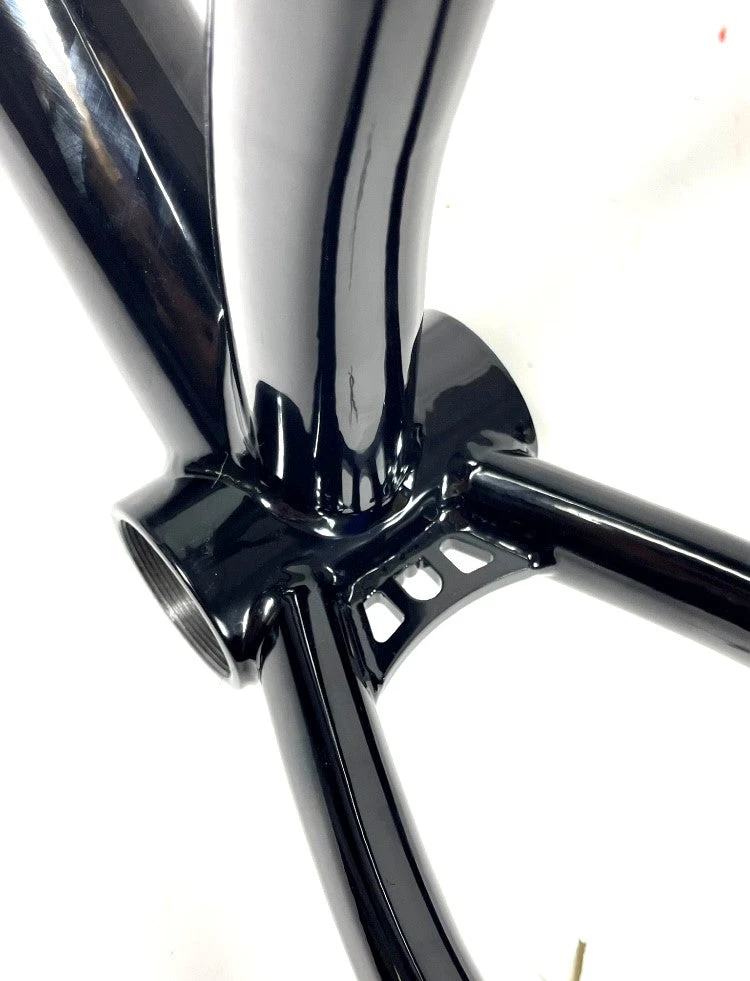

B.B. STYLE	73mm Euro BB
BRAKE MOUNTS	160mm Disc with 0mm IS to POST mount adaptor

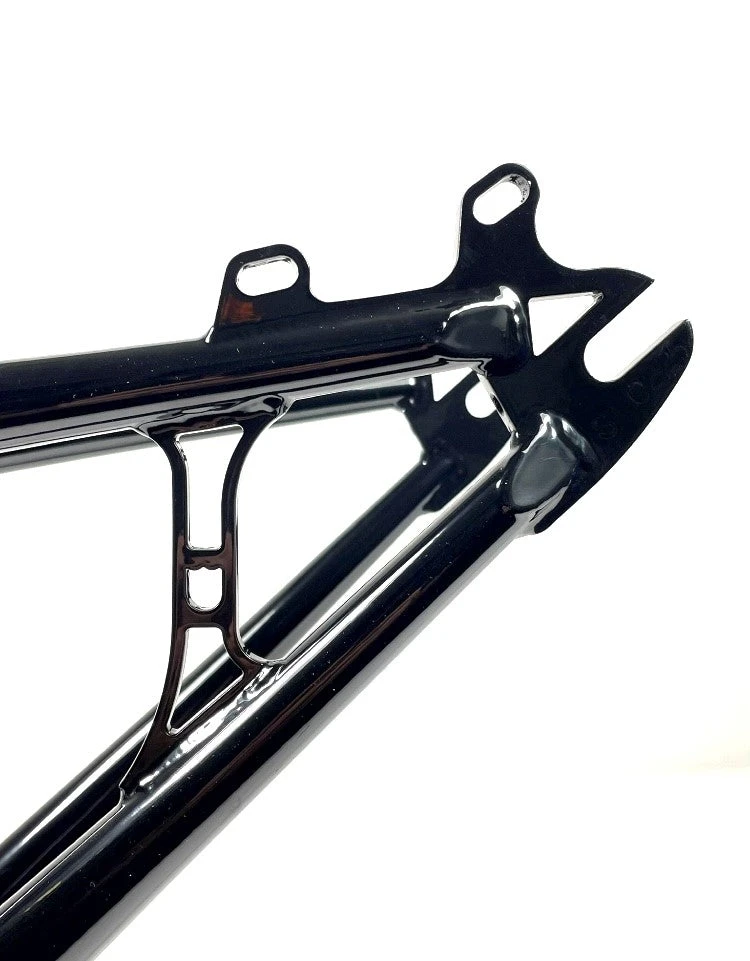

DROPOUTS	3/8″ Slot, 135mm Spacing w/Integrated Tensioners
SEAT POST SIZE	27.2mm Post – 30mm Clamp
WEIGHT	5.6 lbs (22″ TT)
MAX TIRE	26″ X 2.25″ slammed (2.35″ pulled back a bit)
MAX SPROCKET	30T standard chain line (32 with additional Spacers)



COLORS

Raw Dog – This is Gloss Clear, same as a BTM frame and many other S&M/FIT parts. Gloss Clear is a transparent clear polyester and has a high gloss finish.

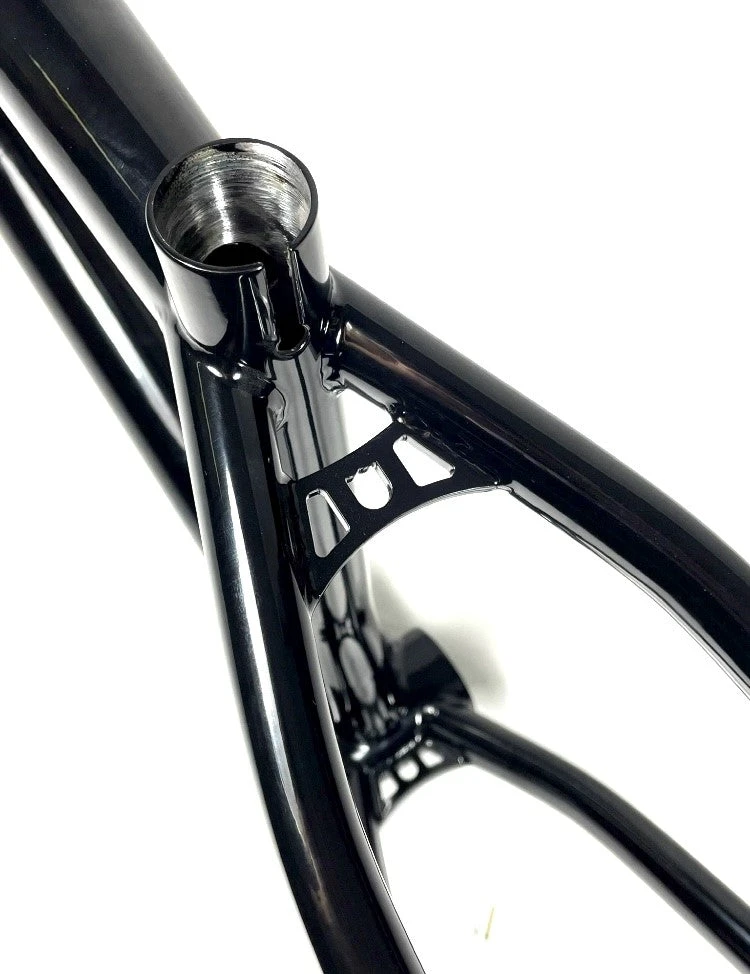

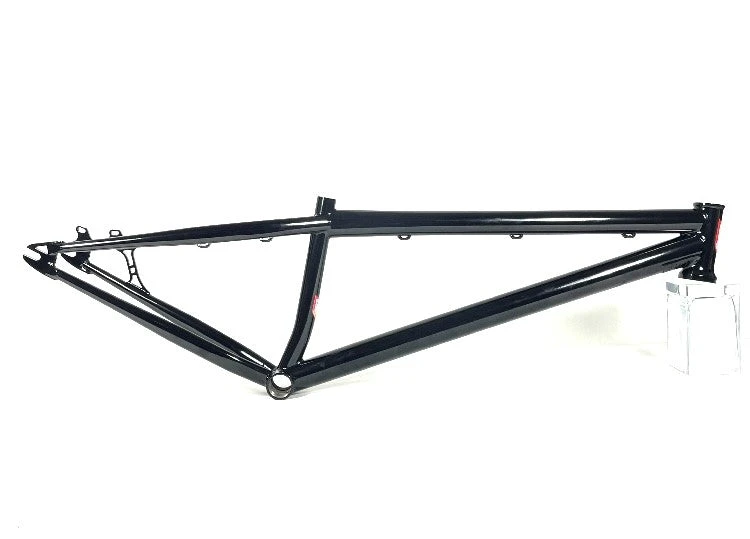

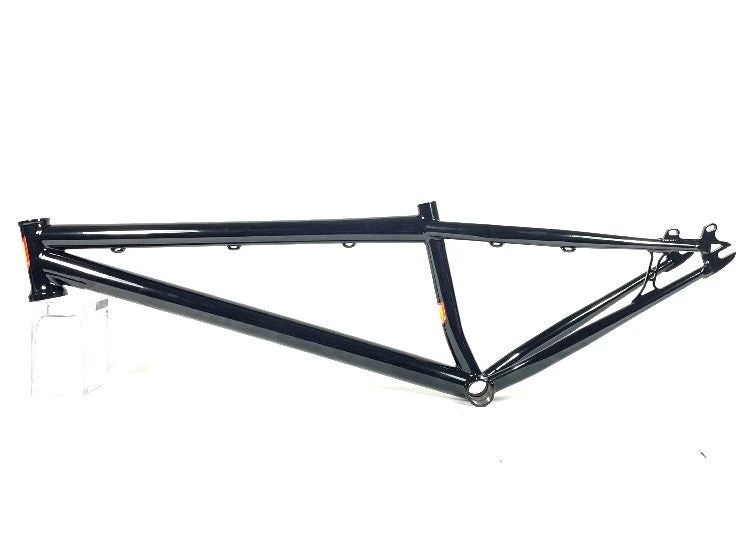

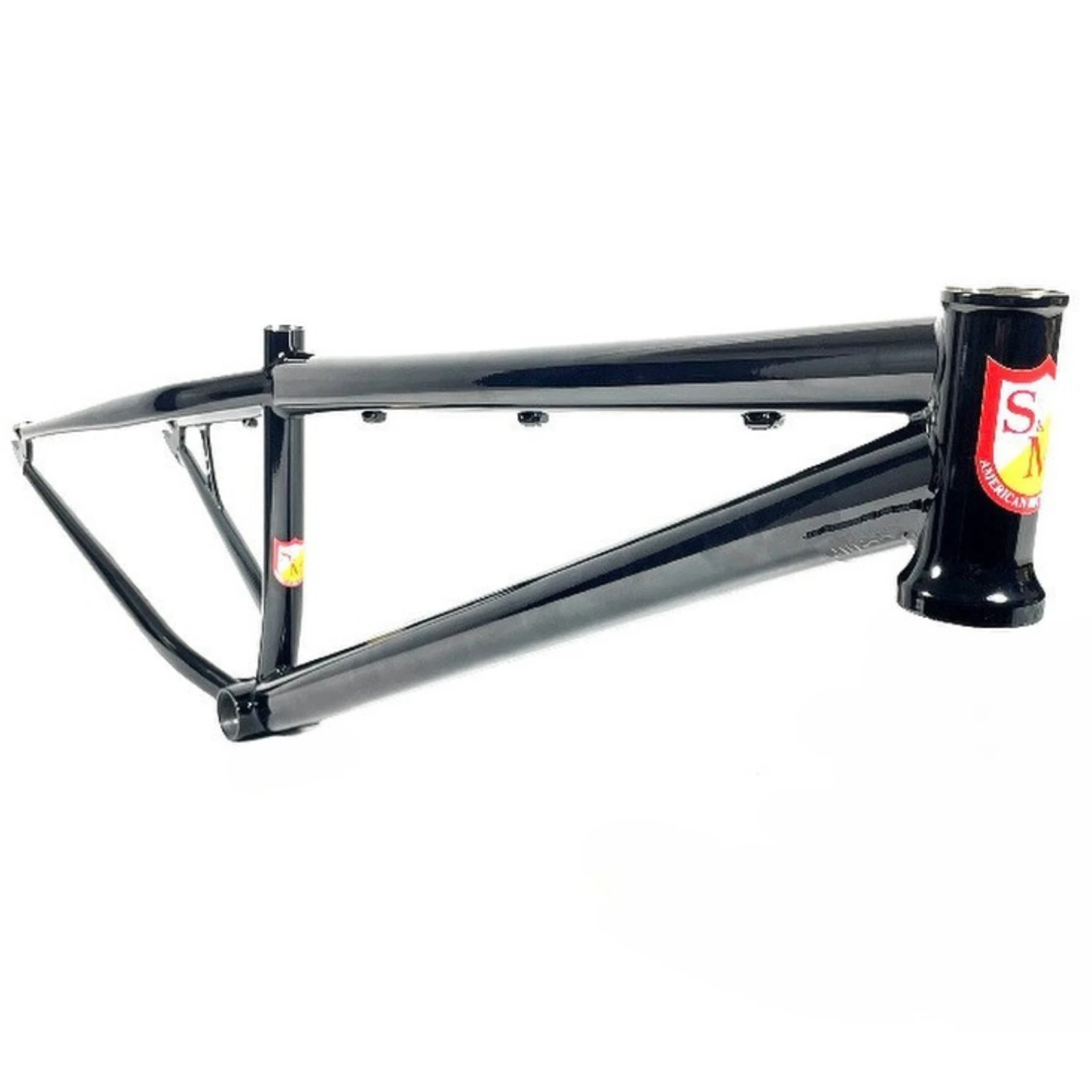

Limousine Black – This is a small tweak on gloss black – same as Hoder BTM Xl frame. Sample pictures are done in this shade of black. Keith Hartwell is currently riding this sample.

Blue Steel (new color) – This is a deep navy blue metallic. This color is a polyester metallic powder coat with a glossy finish. A clear topcoat is applied to enhance the look of this color and to improve UV resistance and overall durability.

Satin Red (new color) – This is a transparent dark maroon-red. This color is a polyester top coat powder coat and has a high gloss finish. Very close to ATF XL Trans Burgundy but a little more red.

Gangrene (new color) – Dark Trans Green.
