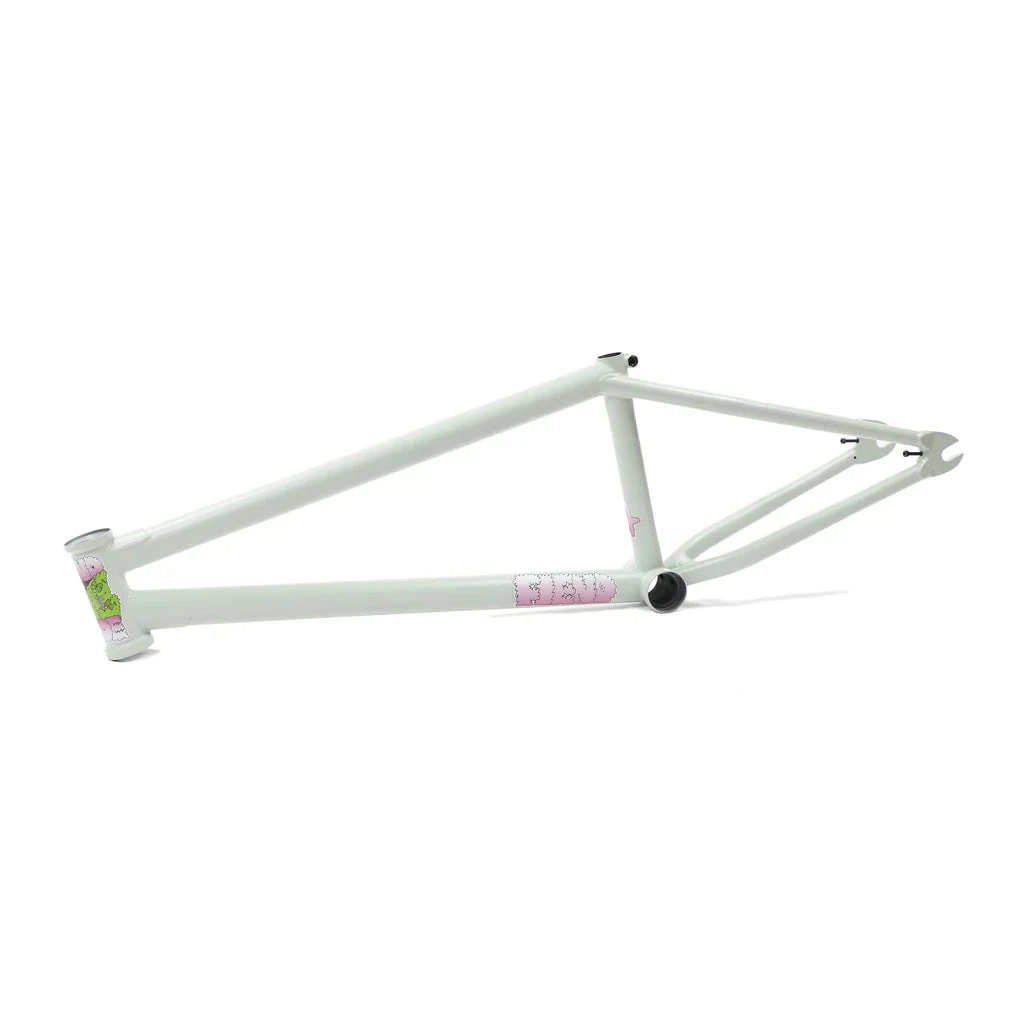

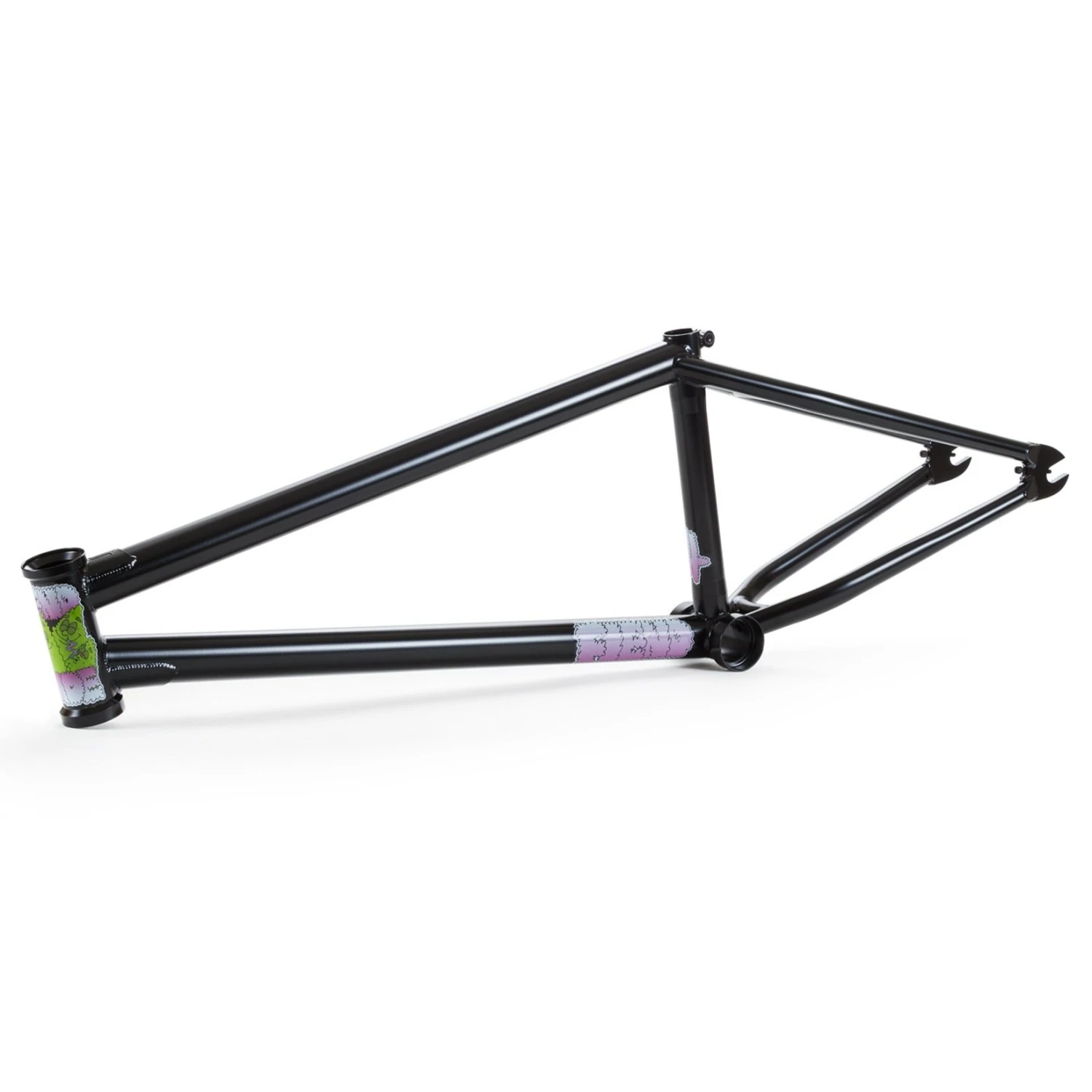

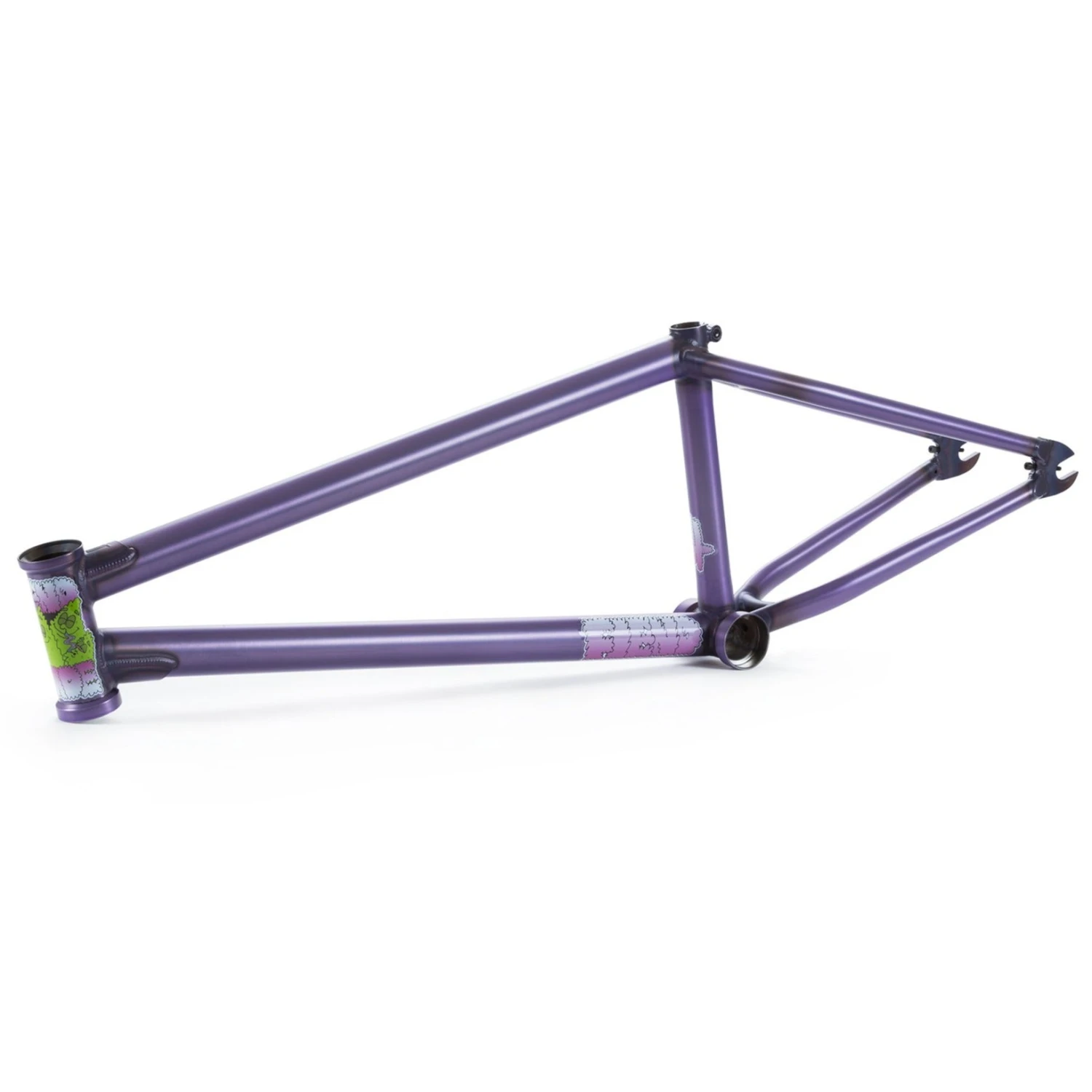

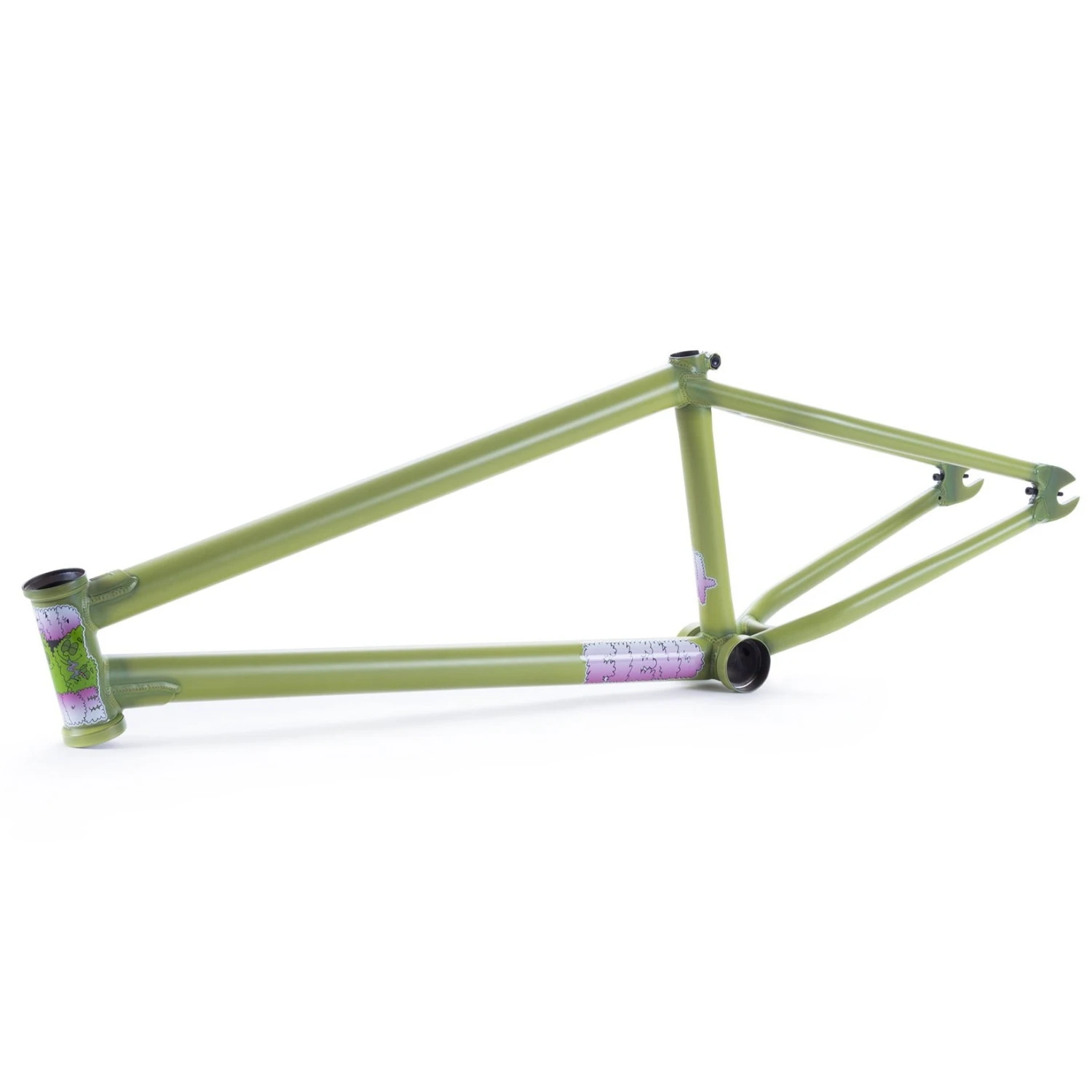

Fiend Morrow V4 Frame

Ty Morrow signature frame. Constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated head tube, a double-butted top tube with external gusset, oval double-butted down tube with external gusset, externally butted seat tube with integrated clamp, tapered seatstays and heat-treated 6mm thick dropouts with integrated tensioners.

Note: Raw, clear, and transparent finishes will often display rust-colored spiderweb imperfections. These are merely aesthetic and do not compromise the integrity of the frame. Such imperfections are NOT considered a manufacturer warranty issue and will be dismissed.

NOTE: THIS FRAME IS NOT DESIGNED FOR USE WITH BRAKES.

Geometry:

Head Tube: 75.5º

Seat Tube: 71º

Standover Height: 9″

Bottom Bracket Height: 11.625″

Chainstay Length: 12.9″

Weight: 5 lbs
